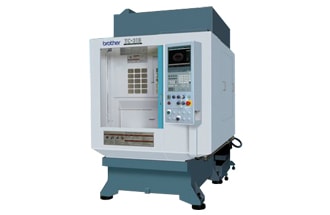

TC-31B
Brand：Brother Milling
Photo credit: Brother Milling
Rating
(0)
0
Write a review
Introduction
New single door
- A compact splash cover and a new single door are used to secure a large opening, enabling easy workpiece loading/unloading and automation.
Chip shower
- Chip shower Chip shower pipes are located at the upper section inside the machine fot more effective chip removal.
ATC
- A magazine with a capacity of 26 tools (one spindle) is used to respond to long machining composed of many jobs that use many tools and multiple products machining.
QT table
- Brother's original 180-degree quick-turn table is standard equipped to enable non-stop operation with zero time-loss during workpiece loading and unloading. A line of multiple machines can easily be formed for automation or to save labor. A use of single machine is, of course, also possible.
Specifications
Spindle Taper
#30
Spindle RPM
22000
Horse Power (HP)
15
Spindle Direction
Vertical
Tool Magazine
26
Angle Head Changer
None
Table Length (inch)
19.7
Table Width (inch)
10.6
Table Loading Capacity (lbs)
179
X Travel (inch)
9.8
Y Travel (inch)
15.7
Z Travel (inch)
13.8
X Rapid Rate (ipm)
1968
Y Rapid Rate (ipm)
1968
Z Rapid Rate (ipm)
1968
Multi-Axis
3
×
