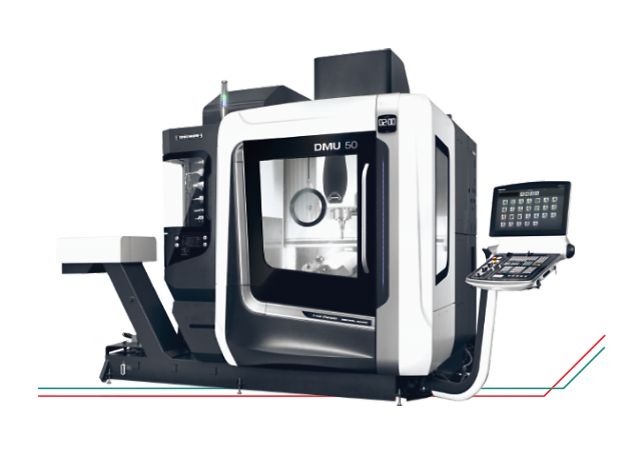

DMU 50
Brand:DMG MORI
Photo credit: DMG MORI
Photo credit: DMG MORI
Photo credit: DMG MORI
Rating (0)
0
Write a review
Features
015-Axis Machining with up to 20,000 rpm
speedMASTER 15,000 rpm with 28.2 hp and 81.9 ft lb in basic version
speedMASTER 15,000 rpm with 61.7 hp and 147.5 ft lb optionally available
speedMASTER 20,000 rpm with 46.9 hp and 95.9 ft lb optionally availabl

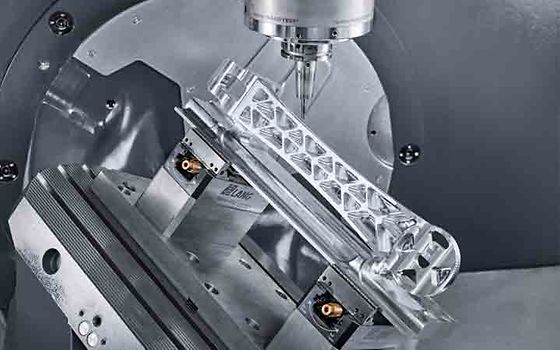

02Swivel Rotary Table for 5-Axes Simultaneous Machining
Table load up to 661.4 lb
Swivel area of the B-axis -35°/+ 110° for highest flexibility
Cooled table bearings for highest precision
03Tool magazine with 30 pockets in basic version
Loading of tools from the front even during machining
Excellent visibility and accessibility
60 or 120 pockets optionally available
Introduction

Digitization is changing our world both quickly and radically. The switch to digitization requires fundamental further development which can only be achieved globally and jointly, in strong partnerships and on an equal footing. DMG MORI continues to develop positively – technologically, structurally and culturally. Our business is marked by Dynamic and Excellence.

Our integrated technology and automation solutions cover turning and milling machines, as well as Advanced Technologies, ULTRASONIC, LASERTEC and ADDITIVE MANUFACTURING.

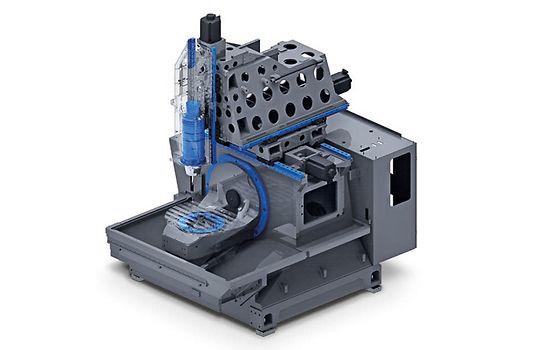

Ever since the DMU 50 was developed over 20 years ago, standards and requirements have been increasing. The 3rd generation of the DMU 50 meets the needs of 5-axis machining of the future and is characterised by innovative mechanical engineering technology. The larger working area and swivel range of the B-axis broaden the range of applications of the machine. Rapid traverses of 42 m/min and a swivel speed of 30 rpm guarantee dynamic machining and up to 30 % shorter cutting cycles. The extensive cooling measures are unique in this machine class and deliver maximum precision.
The latest control technology with ERGOline® Control with a 21.5" multi-touch screen and CELOS® guarantees optimum user-friendliness, precision and reliability. In the DMU 50, DMG MORI is providing the ideal, cost-effective entry into the world of 5-sided and even 5-axis simultaneous machining.

Specifications
Spindle Taper
#40
Spindle RPM
10000
Horse Power (HP)
17.4
Spindle Direction
Vertical
Tool Magazine
16
Angle Head Changer
None
Table Length (inch)
27.6
Table Width (inch)
19.7
Table Loading Capacity (lbs)
1100
X Travel (inch)
19.7
Y Travel (inch)
17.7
Z Travel (inch)
15.8
X Rapid Rate (ipm)
944
Y Rapid Rate (ipm)
944
Z Rapid Rate (ipm)
944
Multi-Axis
3
×
