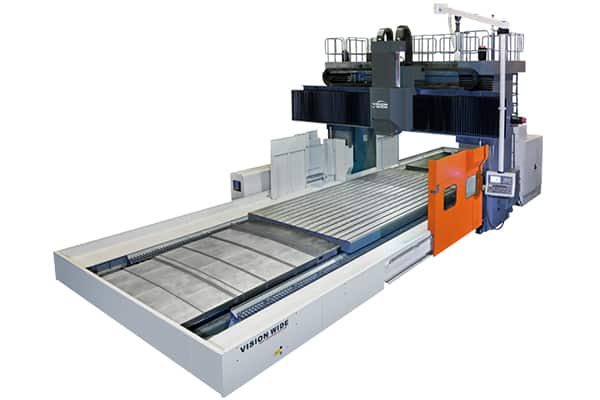

BM series, a beam moving bridge type CNC milling machine center manufactured by Vision Wide, is special designed for large workpiece machining which could contains maximal 2,400mm height of workpieces. Vision Wide applies unique techniques to synchronize W-axis feeding with other axial feeding, and ensure the movable beam’s dynamic straightness and heavy cutting power. We provide X travel from 4,200 mm to 10,200mm, Y travel from 3,000 mm to 4,200 mm, and W travel from 1,000 to 1,500 mm, and multi-angle head attachments for automatic machining.

• BM series 5 faces machines, with typical VW products features of rigid structure and high precision, is unique by the features of movable cross rail and W-axis feed cutting synchronic with other axial feeding. The max. height for work piece & machining is 2,450mm & 2,400mm.
• The movable cross rail can be positioned precisely by dual synchronized servo motors driving system. Besides, it can carry precision feeding and heavy cutting on W-axis.
• Rationing hydraulic system precisely control the parallelism of cross rail travel, even with different position of headstock on Y-travel. Dual cylinders offer strong supporting for W-axis smooth movement.
• Double beams configuration: Fixed beam to keep the best parallelism and maintain the structure rigidity; Movable beam to have the dynamic straightness and sustain the cutting power.
• Precise clamping device can hold the cross beam tightly, well controlling and supporting the spindle cutting accuracy.
• Automatic horizontal and vertical tool changer.
• Automatic head magazine (one head)
• AH attachment-Automatic 5-face function with 700mm longer Y-travel

1. FANUC 0iMD controller
2. 4,000rpm 2-step gear type spindle
3. Z-axis travel 1,000mm
4. Spindle oil cooling device
5. Twin hydraulic cylinders with pressured air assistance balancing system for Z-axis
6. Two hydraulic cylinders with automatic pressure tuning for W-axis
7. Hydraulic braking system for W-axis
8. Absolute pulse coder, dual linear scales for W-axis
9. Ball screws supporting devices for XY-axis
10. Overhead pendulum type operation panel
11. 60T tool magazine (vertical)
    (BM-xx30/35)
12. Centralized auto lubrication system
13. Independent lubrication system for four axis
14. Four piece splash guard
15. Working lamp & 3-color signal lamp
16. Air blast through spindle
17. Movable manual pulse generator (MPG)
18. Wash gun and pneumatic interface
19. RJ45 interface
20. Vision Wide FX graphical user interface
21. Flood coolant system
22. Heat exchanger for electrical cabinet
23. Twin chip screws on table sides
24. Caterpillar chip conveyor
25. Adjustment tool and tool kits
26. Technical manuals（operation, maintenance manual and circuit diagram）
27. Remote monitoring software-Standard(Not available for Siemens controller)

1. 3,000/5,500/6,000rpm 2-step gear type spindle
2. 8,000/ 10,000rpm direct driven spindle
3. 90T tool magazine (vertical) (BM-xx30/35)
4. Coolant through tool holder interface (vertical spindle)
5. Coolant through spindle system (vertical spindle)
6. Interface preparation for coolant through spindle system (vertical spindle)
7. Enclosed sheet metal guard (without roof)
8. Heidenhain linear scale feedback (X, Y, Z)
9. Z-axis travel 1,200/1,400mm
10. 200/300/400/500mm higher column(W-axis travel 1,200 mm)
11. Overhead pendulum type auto lifting operation panel
12. Air conditioner for electrical cabinet
13. Sub working table
14. Oil skimmer
15. Oil mist cooling device
16. Rotary table
17. Interface reserved for rotary table
18. Automatic tool length measurement (VT2030/TS27R/NC4)
19. Automatic workpiece measurement (RMP60)
20. Transformer
21. 3-axis independent manual pulse generator
22. Interface preparation for fourth axis
23. Z-axis retract function at power failure
24. Anti-collision and machining simulation software
25. Remote monitoring software-Professional(Not available for Siemens controller)
