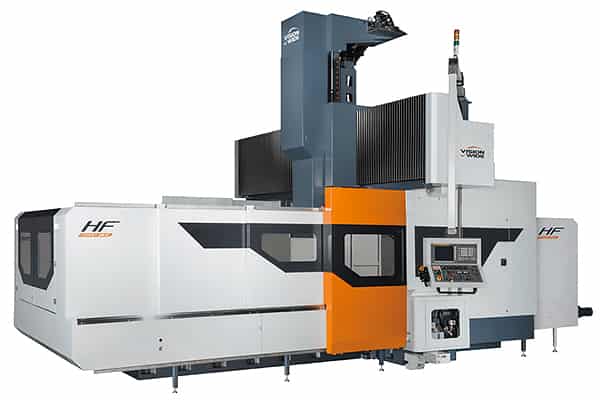

HF series, the 3-axis bridge type CNC milling machining center, is one of the most proud products of Vision Wide which fulfills automatic 5-face machining with super rigidity structure and high positioning accuracy, and its X travel ranges from 4,200mm to 10,200mm, and Y travel ranges from 3,500mm to 4,700mm . HF satisfies demands in mold surface cutting, angles cutting, 3D mold cutting, and precise contour finishing

We developed tool center point compensation, auto multi-angle head attachment, and auto tool change system to complete auto 5-face machining.

• High rigidity box base, best span worktable guideways, and wider load dimension ensured best level dynamic accuracy.
• Cross-section square beam enabled the center of the head close to the beam center to ensure heavy cutting ability.
• Fully auto 5-face machining capacity
  • Auto head change: 90º head / extension head / universal head
  • AVertical and horizontal auto tool change for 90º head.
  • A3-axis mechanical coordinates system

1. FANUC 0iMF controller
2. Box way 4,000rpm 2-step gear type spindle (Z-axis box way)
3. Z-axis travel 920mm
4. Spindle oil cooler
5. Twin hydraulic cylinders with pressured air assistance balancing system
6. X, Y-axis ball screw support device（X-axis 4m above, Y-axis above 3m）
7. Centralized auto lubrication system
8. Independent lubrication oil collector
9. Air blast through spindle
10. Wash gun and pneumatic interface
11. Cutting cooling system
12. 40 tools magazine with arm type ATC
13. Enclosed sheet metal guard（without roof） (X within 2~6 m)
14. Four piece splash guard（for X≥ 8 m）
15. Swiveling arm type operation panel
16. Screw type chip conveyor on table sides
17. Caterpillar type chip conveyor
18. Heat exchanger for electrical cabinet
19. Working lamp
20. Operation cycle finish and alarm light
21. Movable manual pulse generator
22. Footswitch for tool clamping
23. RJ45 interface
24. XYZ-axis absolute pulse coder feedback
25. XYZ-axis travel hard limits protection
26. Spindle cutting load software protection
27. Auto power off
28. Vision Wide FX graphical user interface
29. Foundation pads and bolts kits
30. Adjustment tool and tool kits
31. Technical manuals（operation, maintenance manual and circuit diagram）

1. FANUC 31 iB/ SIEMENS 828D / HEIDENHAIN iTNC530/ MITSUBISHI M70 TypeA/ MITSUBISHI M720VS/ SIEMENS 840D
2. Box way 6,000rpm 2-step gear type spindle
3. Linear way 3000 /4000/5500/6000rpm 2-step gear type spindle
4. 8,000/ 10,000rpm belt type spindle/ direct driven
5. Z axis travel 1,020mm（box way spindle, for gear/ belt type spindle）
6. Z axis travel 1,000/1,200/1,400mm（linear way spindle, for gear/ direct driven type spindle）
7. Column height add up 100/ 200/ 300/ 400/ 500 mm
8. Vertical type tool magazine 40/60T
9. Floor-standing vertical type tool magazine 40/60T
10. Floor-standing vertical-horizontal type tool magazine 40/60T
11. Coolant through spindle system 20/70 bar（Vertical spindle)
12. Spindle ring cutting coolant device（for no head attachment）
13. Coolant through tool holder interface
14. Coolant through tool holder 5/20 bar cutting fluid interface
15. Oil skimmer
16. Oil mist cooling device
17. 60 tools magazine with arm type ATC
18. Enclosed sheet metal guard with roof ( X≤ 6 m，xx23/26 series only )
    Four piece splash guard
    Enclosed sheet metal guard without roof ( X≥ 8 m)
19. Overhead pendulum type operation panel
20. Chip auger on table sides
21. Chip cart
22. Air conditioner for electrical cabinet
23. XYZ-axis linear scale
24. 3-axis independent manual pulse generator
25. Sub working table
26. Rotary table
27. Interface reserved for fourth axis
28. Z-axis retract function at power failure
29. Auto tool length measurement
30. Auto workpiece measurement
31. Transformer
32. Auto warm up
