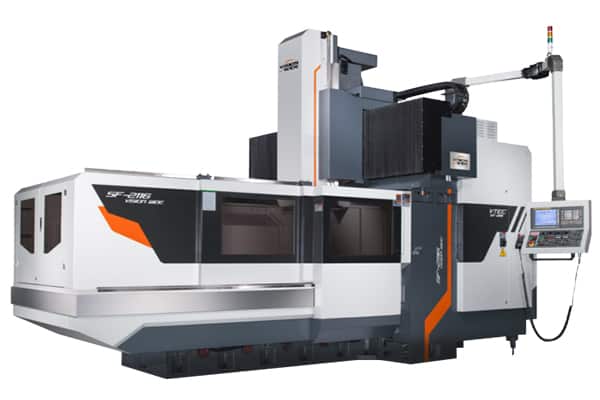

SF series, the most popular bridge type CNC milling machining center of Vision Wide, is 3-axis linear way design with rapid traverse reaching 24 m / min and cutting feed rate reaching 10 m/ min. Suitable for fine components machining and mold cutting.

Its full casting structure provides long term accuracy stability, and ultra-wide column structure with big dimension surface provides the best rigid support of spindle and YZ axis.

Worth value, excellent manufacturing quality, and complete range of specification.

• Ultra-wide base of X axis with thick high rigidity table enhances table load capacity and ensures the best dynamic level accuracy.
• Large stepped design of Y axis makes guide ways close to beam and spindle which effectively increases rigidity of cutting load.
• Z axis 15m rapid traverse, high acceleration/deceleration performance to achieve contour accuracy of high speed mold machining.
• Spindle and thermal compensation function for environmental temperature change can be chosen to ensure the accuracy change within 0.02mm which influenced by environmental temperature change.

1. FANUC 0i MF controller
2. 6,000rpm 2-step gear type spindle (Z axis box way)
3. Spindle oil cooler
4. Twin hydraulic cylinders with pressured air assistance balancing system
5. Centralized auto lubrication system
6. Independent lubrication oil collector
7. Air blast through spindle
8. Wash gun and pneumatic interface
9. Cutting fluid cooling system
10. 32 tools magazine with arm type ATC
11. Sheet metal guard (without roof)
12. Swiveling arm type operation panel
13. Screw type chip conveyor on table side
14. Caterpillar type chip conveyor
15. Heat exchanger for electcrical cabinet
16. Working lamp
17. Operation cycle finish and alarm light
18. Movable manual pulse generator
19. Footswitch for tool clamping
20. RJ 45 interface
21. XYZ axis absolute pulse coder feedback
22. XYZ axis travel hard limits protection
23. Spindle cutting load software protection
24. Remote monitoring software-standard (Not available for SIEMENS controller)
25. Auto power off function
26. Vision Wide FX-100 graphical user interface
27. Foundation pads and bolts kits
28. Adjustment tool and tool kits
29. Technical manuals（operation, maintenance manual and circuit diagram）

1. 4,000rpm 2-step gear type spindle (Z axis box way)
2. 8,000/ 10,000rpm belt-driven spindle
3. 10,000(BT-50)/ 12,000(BT-40)rpm direct-driven spindle
4. Z axis travel 1,020mm(box way spindle head, for AC head attachment)
5. Z axis travel 1,000mm(linear way spindle head)
6. 200/ 300/ 400/ 500mm higher column(SF-xx12 series only for 200mm higher column)
7. Spindle ring cutting coolant device（for no head attachment）
8. Coolant through spindle system 20/70 bar（Vertical spindle）
9. Coolant through tool holder interface
10. Coolant through tool holder 5/20 bar cutting fluid interface
11. Oil skimmer
12. Oil mist cooling device
13. 40/60 tools magazine with arm type ATC
14. Sheet metal guard with roof
15. Chip auger on table side
16. Chip cart
17. Air conditioning for electrical cabinet
18. XYZ axis linear scale feedback
19. 3 axis independent manual pulse generator
20. Sub working table
21. Rotary table
22. Interface reserved for fourth axis
23. Spindle cutting load hardware protection
24. Z axis retract function at power failure
25. Anti-collision and process simulation software
26. Remote monitoring software-professional (Not available for SIEMENS controller)
27. Auto tool length measurement
28. Auto workpiece measurement
29. Transformer
30. Auto warm up function
31. Thermal compensation
