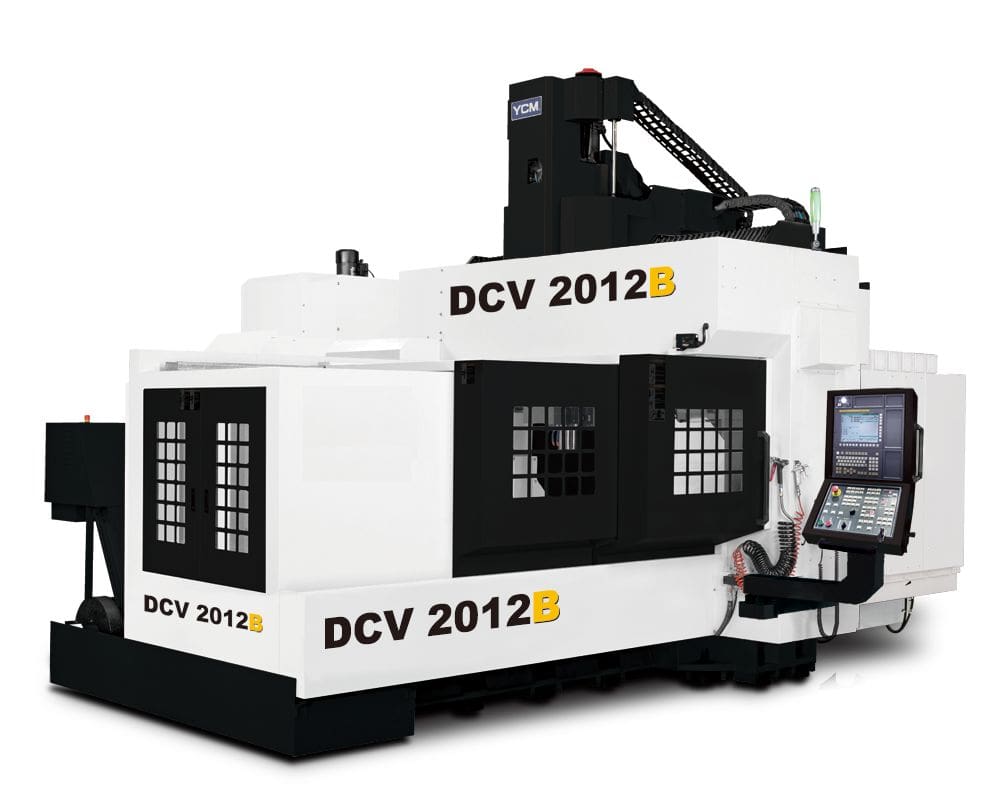

DCV2018 5-Axis

Brand：YCM

Photo credit: YCM

Rating (0)

Write a review

Introduction

Reinforced Body Structure

One-piece Column
One-piece Base
Ultimate rigidity and proportion of the headstock
Internal double A type ribbed bed design through FEM analysis offers full support for table.
1,800 mm distance between columns increases the stability of machine

Extra Rigidity Guideways

Roller type linear guideways on X / Y / Z-axis.
Y axis linear guideways design with large span with horizontal and vertical directions which can take the saddle weight and machining force.
Direct driven motors on Y / Z-axis reduce backlash and ensure perfect axial accuracy.
X-axis is gearbox driven.

High Payload Table

The work table is precisely ground before assembled to ensure DCV series excellent machining results.
8 tons maximum table machining loading.

B/C-axis Head

DD motor drive, no backlash.
B/C axis rotary speed 100 rev/min.
C-axis includes three roller bearings to increase rigidity and accuracy.
B-axis high rigidity and high accuracy cross roller bearing.
Heidenhain accuracy encoder included as standard.
Pneumatic positioning clamping equipment.
Over travel protection design.
B-axis anti-drop function at power outage.

Unique Isolated Direct Drive Design

Deliver maximum spindle speed of up to 18,000 rpm driven by 56/70kW motor

Specifications

Spindle Taper

HSK63

Spindle RPM

18000

Horse Power (HP)

Spindle Direction

Vertical

Tool Magazine

Angle Head Changer

None

Table Length (inch)

78.74

Table Width (inch)

43.31

Table Loading Capacity (lbs)

8818

X Travel (inch)

78.74

Y Travel (inch)

70.86

Z Travel (inch)

X Rapid Rate (ipm)

787

Y Rapid Rate (ipm)

787

Z Rapid Rate (ipm)

591

Multi-Axis
