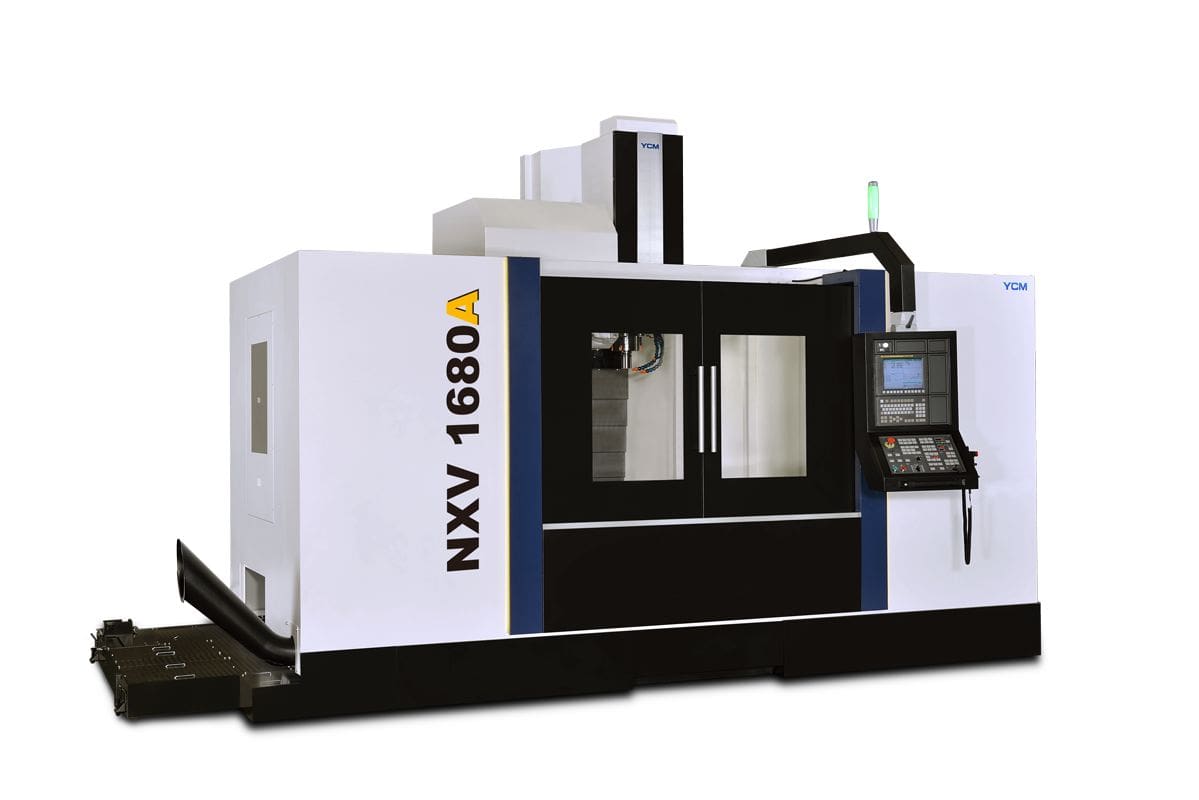

NXV1680A
Brand：YCM
Photo credit: YCM
Rating (0)
0
Write a review
Introduction

YCM In-house IDD Spindle

  • Tool unclamping cushion extends spindle bearing life by protecting spindle bearing from tool unclamping force.
  • Spindle cooling system (opt.) removes heat efficiently and minimizes thermal deformation.
  • Ceramic bearings features low inertia mass, low centrifugal force, high rigidity and low coefficient of thermal deformation.
  • High precision helical springs features high dynamic balance and low vibration.
  • Grease lubrication for 12,000 rpm spindle ; Oil-air lubrication for 15,000 rpm spindle.
YCM In-house IDD Spindle

High Rigidity Design

  • FEM analysis is adopted to ensure the best mass arrangement and rib construction of the machine for constant stability under the intensive load of heavy-duty cutting.
  • All axial AC servo motors equipped with Absolute Positioning Encoders, no zero return needed.
  • Direct drive provides backlash free, best accuracy, reliability and stability.
  • High rigidity and high loading linear guideways applied on the three axes.
  • 6 slide blocks on X-axis and 4 linear guideways on Y-axis
  • No counter weight on Z-axis
  • The rigid body construction makes for uncompromising precision and rigidity.
High Rigidity Design

High Stability Tool Magazine

  • Absolute encoder ATC system provides high stability and speed.
  • Inverter controlled, prevents tool change speed from changing under different power supply frequency.
  • Tool change speed can be adjustable for heavy tools.
  • Auto Tool Change (T-T) 1.8 sec.
  • 24T (30/48/60T opt.)
High Stability Tool Magazine

Automatic Tool Magazine Door Design

  • Driven by pneumatic cylinder.
  • Prevent coolant and chips from entering tool magazine.
Automatic Tool Magazine Door Design

Brand New Exterior Design

  • Full enclosure exterior (including top cover).
  • Convertible side window for convenient chip removal.
  • Aesthetic rear cover design.
  • Coolant shower for efficient chip removal <NXV Series std.>
  • Penta chip augers (4 Y-axial 1 X-axial) ensure fluent chip removal prevent chips from piling up. [Quad chip augers (4 Y-axial Chip Conveyor) opt.]
Brand New Exterior Design
Specifications
Spindle Taper
#40
Spindle RPM
12000
Horse Power (HP)
30
Spindle Direction
Vertical
Tool Magazine
24
Angle Head Changer
None
Table Length (inch)
68.11
Table Width (inch)
29.92
Table Loading Capacity (lbs)
3300
X Travel (inch)
64.17
Y Travel (inch)
30
Z Travel (inch)
27.55
X Rapid Rate (ipm)
1179
Y Rapid Rate (ipm)
1179
Z Rapid Rate (ipm)
945
Multi-Axis
3
×
