High Performance
- Large working area is ideal for large and long workpieces machining.
- With the installation of dividing wall in the working area, both long and complex parts can be manufactured in the same machine.
Back to product list
Milling
Request a quote

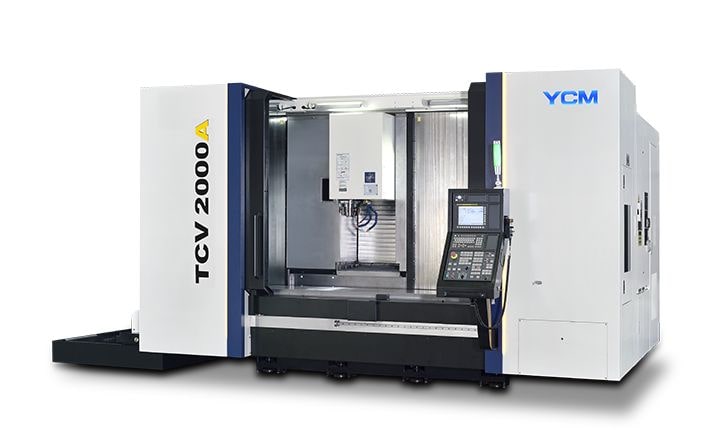

TCV2000A
Brand：YCM
Photo credit: YCM
Rating
(0)
0
Write a review
Introduction
High Efficiency
- X-axis is capable of reaching up to 40 m/min rapid feedrate.
- Circulated cooling system design on X-axis ensures stable temperature and optimal accuracy.
- Extra guideway blocks support ATC magazine to ensure smooth and stable movement.
Reinforced Body Structure
- High efficiency traveling column design.
- Large delta machine column and base ensure highest stability.
- With FEM analysis.
- With step guideways and 6 slider blocks on X-axis ensure the ultra reliable axial movement.
- No counter weight design on Z-axis that lowers vibration while machining andgreatly improves surface roughness.
- Wide span design of machine structure.
Specifications
Spindle Taper
#40
Spindle RPM
12000
Horse Power (HP)
29.3
Spindle Direction
Vertical
Tool Magazine
30
Angle Head Changer
None
Table Length (inch)
98.4
Table Width (inch)
20.47
Table Loading Capacity (lbs)
4400
X Travel (inch)
78.7
Y Travel (inch)
20.47
Z Travel (inch)
21.25
X Rapid Rate (ipm)
1572
Y Rapid Rate (ipm)
1572
Z Rapid Rate (ipm)
1572
Multi-Axis
3
×
