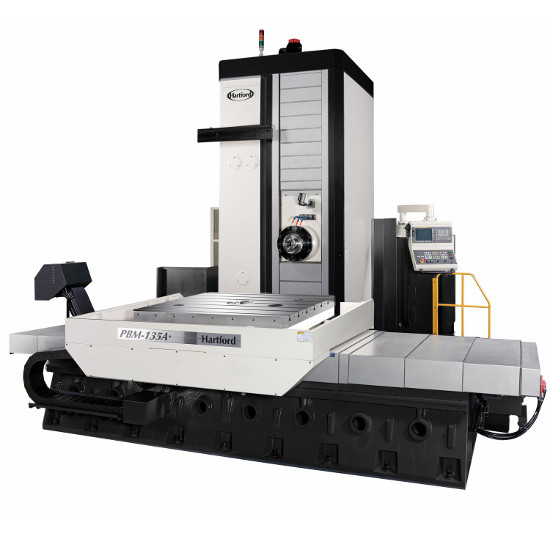

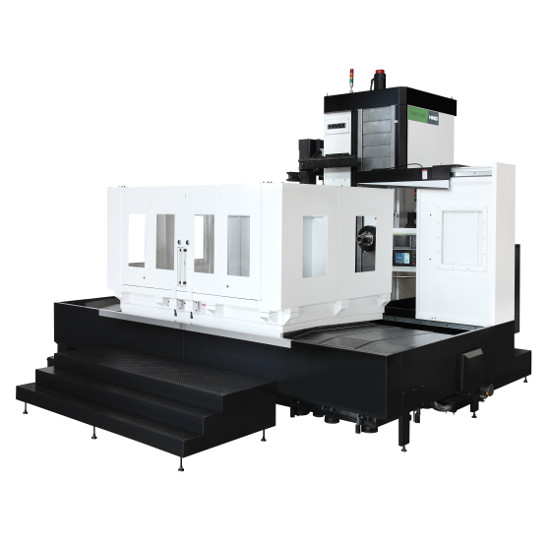

PBM115A
Brand：Hartford_HMG
Photo credit: Hartford_HMG
Photo credit: Hartford_HMG
Rating
(0)
0
Write a review
Introduction
High rigidity
+4-step gear-driven spindle head
+W-axis with two linear ways
Oversize column
For greater stability during cutting
Specially designed rear and front base structure
+Significantly improves structural rigidity.
Spindle gear with central cooling system
+Boring center accuracy: 0.02mm
+Positioning accuracy: Within 0.01mm
+Inner hole surface roughness: 3.2um
Heavy duty precision spindle
+Spindle travel 700mm
+4-step spindle speeds
+Automatic cooling and lubrication
+Rigid spindle stock
Spindle torque output: 200% greater
W-axis is supported by two linear guideways for greater supporting capacity.
Oil/fluid separation design
+Casting iron design with oil/fluid separation design ensure the cleanness of environments.
Specifications
Spindle Taper
#50
Spindle RPM
3000
Spindle Direction
Horizontal
Tool Magazine
60
Angle Head Changer
Optional
Table Length (inch)
55.12
Table Width (inch)
62.99
Table Loading Capacity (lbs)
17636
X Travel (inch)
78.74
Y Travel (inch)
62.99
Z Travel (inch)
59.06
X Rapid Rate (ipm)
590
Y Rapid Rate (ipm)
472
Z Rapid Rate (ipm)
590
Multi-Axis
4
×
