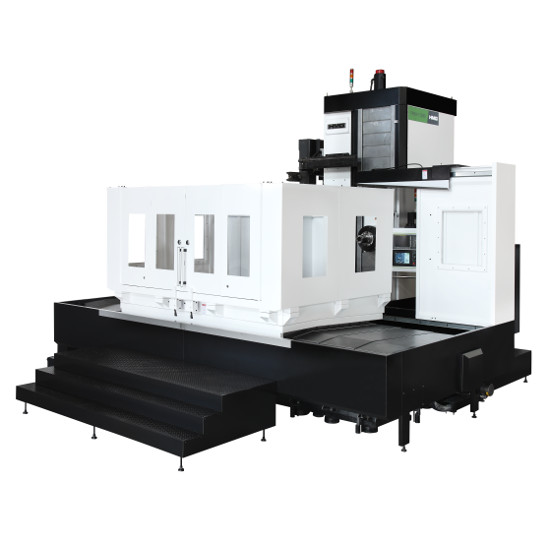

PBM-135B
Brand：Hartford_HMG
Photo credit: Hartford_HMG
Photo credit: Hartford_HMG
Rating
(1)
5
Write a review
William S89
／
Introduction
High rigidity
+4-step gear-driven spindle head
+W-axis with two linear ways
Oversize column
For greater stability during cutting
Specially designed rear and front base structure
+Significantly improves structural rigidity.
Spindle gear with central cooling system
+Boring center accuracy: 0.02mm
+Positioning accuracy: Within 0.01mm
+Inner hole surface roughness: 3.2um
Heavy duty precision spindle
+Spindle travel 700mm
+4-step spindle speeds
+Automatic cooling and lubrication
+Rigid spindle stock
Spindle torque output: 200% greater
W-axis is supported by two linear guideways for greater supporting capacity.
Oil/fluid separation design
+Casting iron design with oil/fluid separation design ensure the cleanness of environments.
Specifications
Spindle Taper
#50
Spindle RPM
2500
Spindle Direction
Horizontal
Tool Magazine
60
Angle Head Changer
Optional
Table Length (inch)
62.99
Table Width (inch)
70.87
Table Loading Capacity (lbs)
26455
X Travel (inch)
98.43
Y Travel (inch)
74.8
Z Travel (inch)
59.06
X Rapid Rate (ipm)
393
Y Rapid Rate (ipm)
393
Z Rapid Rate (ipm)
393
Multi-Axis
4
×
