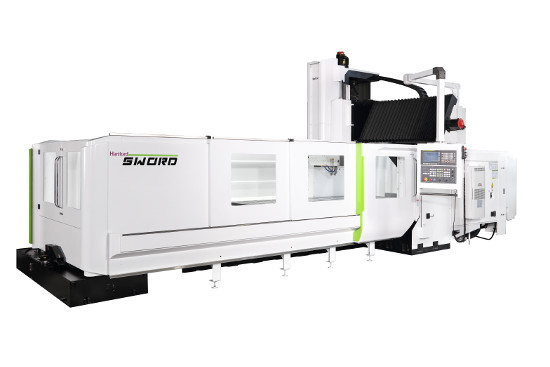

SW-423
Brand：Hartford_HMG
Photo credit: Hartford_HMG
Rating
(0)
0
Write a review
Introduction
|
Slant beam structure +Slant beam construction fully exhibits powerful cutting capacity in milling and boring operations. Long nose spindle +Provides increased convenience for mold and part cavity machining One-piece fabricated spindle head +One-piece construction spindle prevents effects on machining accuracy caused by resonance and thermal deformation. |
|
|
Double gibs on Y,Z-axis +Increase the match between the tapered gib and the casting part. As a result, higher machining accuracy can be achieved. Extra wide saddle construction +Make spindle head achieve greater stability during cutting |
|
Specifications
Spindle Taper
#50
Spindle RPM
6000
Spindle Direction
Vertical
Tool Magazine
60
Angle Head Changer
Optional
Table Length (inch)
157.48
Table Width (inch)
86.61
Table Loading Capacity (lbs)
26455
X Travel (inch)
157
Y Travel (inch)
90.55
Z Travel (inch)
30.71
X Rapid Rate (ipm)
472
Y Rapid Rate (ipm)
472
Z Rapid Rate (ipm)
472
Multi-Axis
3
×
