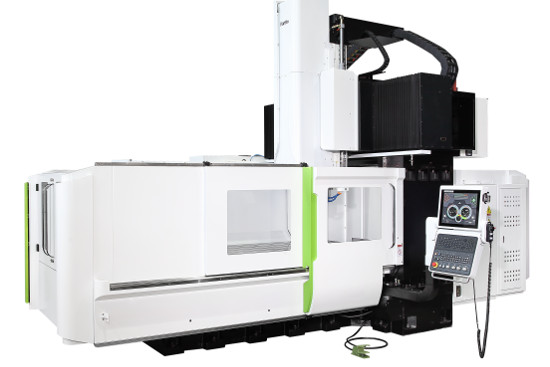

HEP3150
Brand：Hartford_HMG
Photo credit: Hartford_HMG
Rating
(0)
0
Write a review
Introduction
Oil/fluid separation on base
+The completed oil/fluid separation design throughout the machine extends the service life of fluids and save on production costs.
+It meets environmental protection requirements.
+Combined with the patented oil/fluid separation tank to achieve the best oil/fluid separation effect.
Durable, overlapped beam, column and base construction
+Extra high box type beam construction combined with shortened column length increase the rigidity of entire structure.
+ Scraping accuracy calibration is easier to control.
Spindle head
+Box type, thermal symmetry spindle head construction.
Hydraulically balanced Z-axis
+Automatic positioning calibration design increase Z-axis feed smoothness and machining accuracy.
Specifications
Spindle Taper
#50
Spindle RPM
12000
Spindle Direction
Vertical
Tool Magazine
40
Angle Head Changer
Optional
Table Length (inch)
118.11
Table Width (inch)
55.12
Table Loading Capacity (lbs)
22046
X Travel (inch)
127.95
Y Travel (inch)
62.99
Z Travel (inch)
30.71
X Rapid Rate (ipm)
944
Y Rapid Rate (ipm)
944
Z Rapid Rate (ipm)
787
Multi-Axis
3
×
