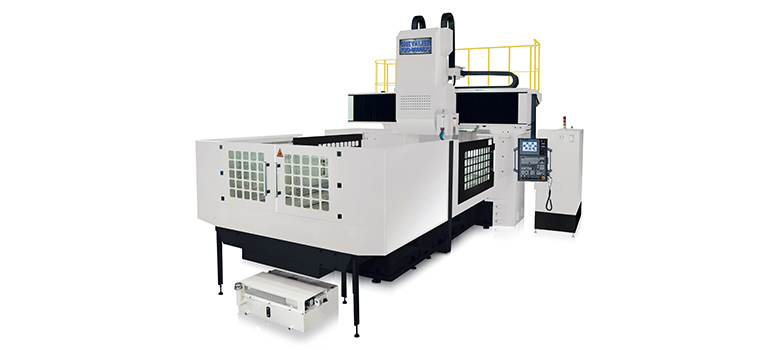

FSG-60DC
Brand：Chevalier Machinery, Inc.
Photo credit: Chevalier Machinery, Inc.
Rating
(0)
0
Write a review
Introduction
- Patented Elevation Guideways and Spindle Structure.
- Spindle Construction.
- Automatic Lubrication System.
- saddle System Design.
- Patented Linear Guideway Design.
- Machine Base and Table Design.
- SMART Control and Fixed Beam Type
- Table Size (W x L): up to 1,500 x 3,000mm (59" x 118")
- Max. Table Load: up to 35,000kg (77,000 lbs.)
- Spindle Speed: 500~2,000rpm
- Spindle Motor: up to 25HP on Horizonal Head, Option Vertical Head up to 15HP (FSG-60DC series)
- Greater Spindle HP Available(FSG-60 series)
- Total Rated Power: 30HP~80HP
- Electromagnetic chuck (with chuck controller).
- Table mounted grinding wheel dresser (without diamond disc).
- Automatic paper filter type coolant system with magnetic separator & chiller.
- Dynamic wheel balancing system.
- Anti-crash protection device for spindle.
- Y,Z axis digital read out system.
- Grinding wheel dresser driven by air cylinder.
- Wheel balancing stand.
- Extra wheel flange.
- Vertical grinding head (FSG-60DC series, includes 2 wheel flange).
Specifications
Grinder Type
Surface-Recip
Operation Type
CNC
O.A. Grinding L. (inch)
59
O.A. Grinding W. (inch)
59
Table-Wheel (max)
55
Workpiece weight (max, lbs)
8800
Table surface (L)( inch)
118
Table surface (W) (inch)
59
Wheel head motor
20
Wheel head top speed
2000
Longitudinal Travel (inch)
126
Cross Travel (inch)
59
Vertical Travel (inch)
66000
×
