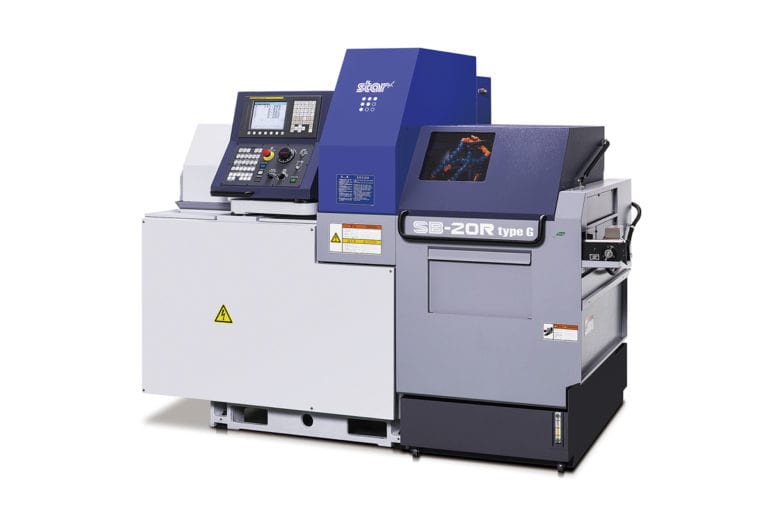

SB-20R Type G CNC Swiss-type Automatic Lathe

The SB-20R Type G offers a wide range of machining operations that is made possible with the unique Guide Bush/Non-Guide Bush switching function.

• Maximum machining diameter 20mm
• Flexible tooling layouts allow for endless variations of complex machining
• 4 types of tool posts available from which to select the tooling layout most suited to the required machining applications
• Maximum tooling variations yield performance that meets manufacturing needs across multiple industries
• Flexible tooling layouts include the ability to combine the selection of tool post and cartridge unit

Standard Accessories and Functions

1. CNC unit Fanuc 0i-TD
2. Operation panel 8.4” color LCD display
3. Pneumatic unit
4. Automatic centralized lubrication unit
5. Coolant level detector
6. Door interlock system
7. Broken cutoff tool detector
8. Parts ejection detector
9. Drive unit for revolving guide bush
10. Revolving guide bus unit
11. Main/Sub collet
12. C-axis control (Main/Sub)
13. Spindle clamp unit (Main/Sub)
14. Tool holder
15. 4-Spindle cross drilling unit
16. 4-Spindle sleeve holder
17. Back 4-Spindle unit
18. Air purge for revolving guide bush
19. Sub spindle air purge unit
20. Sub spindle air blow unit
21. Work light
22. Leakage breaker

Optional Accessories and Functions

1. Water removal unit
2. Beacon
3. Parts conveyor
4. Parts receptacle in the machine
5. Parts separator unit A
6. Main spindle inner tube
7. 5-spindle cross drilling unit
8. Cartridge-type 5-spindle cross drilling unit
9. Cartridge-type 5-spindle high-speed cross drilling unit
10. Drive unit for power-driven attachment B
11. Parts ejector (Air cylinder type)
12. Parts ejector (Spring type)
13. Parts ejector with guide tube
14. Parts stopper unit
15. Coolant unit 2.5MPa
16. Coolant unit signal cable
17. Coolant unit power cable
18. Coolant valve 2.5MPa
19. Coolant pipings
20. Automatic bar feeder interface
21. Compliant with RS-232C interface
22. Transformer
23. Safety relay module version
24. Transformer CE marking version
25. Cable for CE marking version
