SV-32J
Brand：Star
Photo credit: Star
Rating
(0)
0
Write a review
Introduction

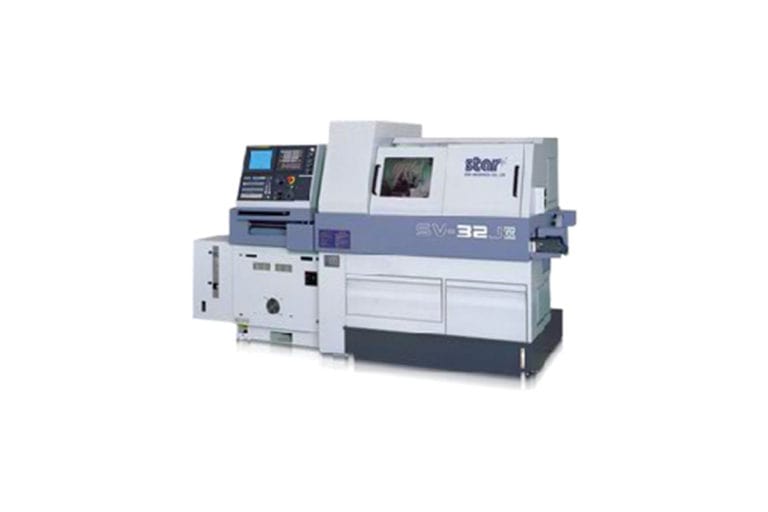

SV-32J II CNC Swiss-type Automatic Lathe
Delivers outstanding heavy-duty cutting performance for large diameter parts/shafts of complex components with remarkable speed
- Superb versatility: cross milling, front off-center drilling, main/sub spindle rigid tapping and simultaneous drilling, and back off-center drilling
- 8-station turret tool post-design with up to 3-power driven tools on the gang tool post
- 16mm section cutting tools and high main drive motor output
- Complex machining capability
Specifications
Turning Diameter (inch)
1.25
Turning Length (inch)
12.203
Maximum Swing (inch)
1.25
Bar Capacity
1.25
Spindle Nose
Star
Spinlde Bore (inch)
1.5
Top RPM
7000
Spindle Horse Power
10
X Travel (inch)
0.75
Y Travel (inch)
0.75
Z Travel (inch)
11.811
Z axis Rapid Rate (ipm)
708
Number of Turning Tools
4
Shank od. (inch)
0.63
Number of Rotary Tools
3
Rotary HP
1
Rotary RPM
6000
×
