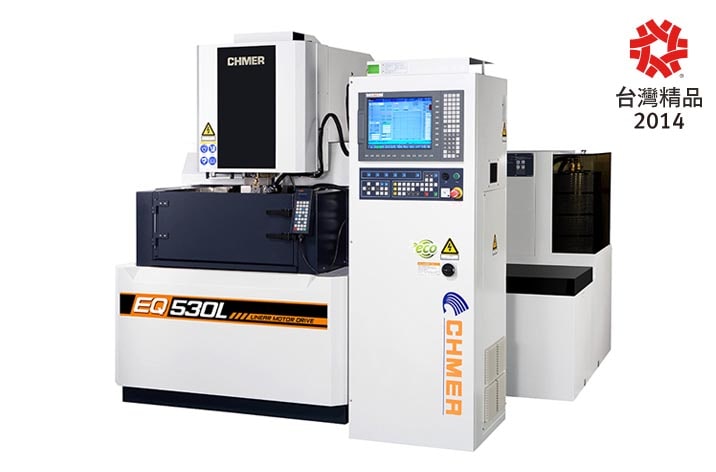

EQ530L
Brand：Chmer
Photo credit: Chmer
Rating
(0)
0
Write a review
Introduction
GANTRY TYPE LINEAR DRIVE WIRE CUT EDM
◎Global pioneer gantry moving structure design.
◎Highly efficient In-House Linear Motor drive system.
◎New G7 energy saving power supply.
◎The newest generation AWT.
◎National pioneer lower arm design.
Specifications
Machine Type
線切割
Max Part Size (L) (inch)
33.46
Max Part Size (D)(inch)
19.7
Max Part Size (H)(inch)
7.78
Max Part Weight (lbs)
1320
Work Tank Dielectric cap. (gal)
245
X Travel (inch)
19.7
Y Travel (inch)
11.81
Z Travel (inch)
7.87
X Rapid (ipm)
59
Y Rapid (ipm)
59
Z Rapid (ipm)
59
U Travel (inch)
2.36
V Travel (inch)
2.36
Max. Taper Angle
14.5
Max. Wire Diameter
0.0118
Min. Hole Diameter (inch)
0.006
×
