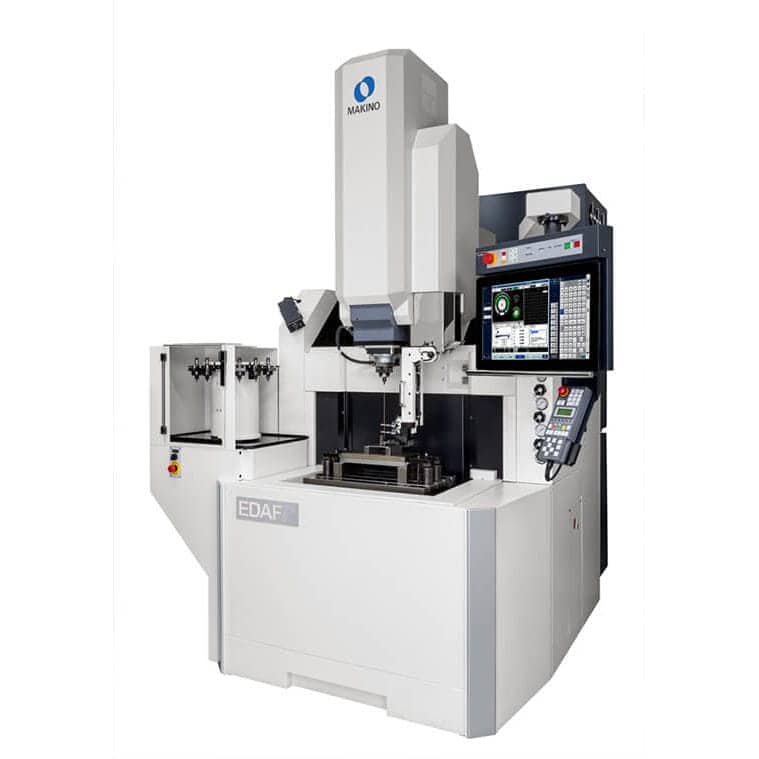

The EDAF3-Fine Hole machine features Makino’s Hyper-i control, which provides an advanced and streamlined interface designed to enhance the capability and productivity of operators of all skill levels.  The Hyper-i control achieves higher levels of operational efficiency through its intuitive layout that provides a commanding view with a 24” class high-definition touch screen and the development of powerful and practical support tools such as the on-board training system and E-Tech Doctor functions. The machine floor space requirements are reduced by integrating the di-electric reservoir into the base casting while also improving thermal stability; sustained long-term precision is further enhanced by circulating chilled fluid through the Y-Axis and Z-Axis structures to maintain the entire machine at a stable temperature.  The machine also features excellent operator ergonomic access that is also automation ready with a 3-sided programmable Rise and Fall work tank, and is equipped with a U/V Flame Sensor and Fire Extinguisher system for safe unattended operation.

The EDAF3-Fine Hole incorporates several components that are specifically designed for high accuracy EDM Hole Drilling operations, such as the programmable W-Axis and Arm Structure that contains the Die Guide and Middle Guide support components.  The W-Axis runs parallel with the Z-Axis but is independent for proper positioning to the Die Guide.  The entire W-Axis Arm can be removed and installed on the machine in less than a minute using a series of quick disconnects and a rigid Curvic coupler for unobstructed Ram EDM operation, and the W-Axis Arm also contains a Middle Guide system that prevents vibration or bending of small diameter electrodes during EDM Drilling.  The EDAF3-Fine Hole machine also utilizes high pressure flushing during EDM Drilling operations, and offers pressures up to 6MPa (870psi) or 10MPa (1,490psi), and is standard with a high speed C-Axis that provides precision indexing and continuous rotation speeds up to 2,000rpm
