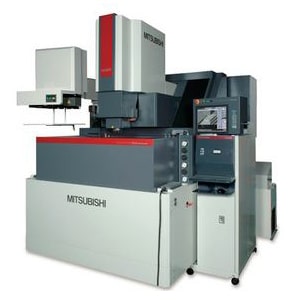

EA28V Advance
Brand：Mitsubishi EDM
Photo credit: Mitsubishi EDM
Rating
(0)
0
Write a review
Introduction
The new EA28V Advance allows for the high-speed machining of tungsten carbide with copper tungsten electrodes. The new machine houses the standard V-series power supply which reduces electrode wear by as much as 50 percent when machining tungsten carbide. The Mitsubishi EA28V Advance features the new M700 series control with a 15-inch touchscreen. And the FP120V energy-saving power supply reduces electrical consumption by 20 percent compared to the previous FP model.
FEATURES
- New High-Speed "V" Power Supply (FP120V STD or FP80V Optional)
- Compact Highly-Rigid Machine Design
- Fixed Table Traveling Column Construction
- Thermal Displacement Compensation Control
- Direct Drive AC Smart Servo System
- 3 Dimensional Lateral Servo System
- All-Axes Linear Glass Scale Feedback
- M700 Series Control w 15" Touch Screen
- Windows XP Operating System
- USB and Ethernet Data Inputs Standard
- 40GB HD with a 1GB partition for user program storage
- 3-Sided Drop Tank Work Tank Access
- Easy Access Dual-Filter System
- Dielectric Fluid Chiller Standard
- New High-Inertia Style C-Axis
- Multi-Port Flushing Manaifold
- 36 Position Multi-Step Rise and Fall Worktank
- Auto Lubrication System
- E.S.P.E.R. Advance Program Support Functions
- Fuzzy Pro Plus Hands Off Operation
- Full 2-yr. Warranty with Triple Diamond Partnership Program
- Remote 360 (Remote user monitoring, diagnostics & service support)
- Preventative Maintenance (PM) Visit (to be used by end of 1st year)
Specifications
Machine Type
放電加工
Max Part Size (L) (inch)
41.3
Max Part Size (D)(inch)
29.9
Max Part Size (H)(inch)
13.8
Max Part Weight (lbs)
4400
Table Length (inch)
33.4
Table Depth (inch)
23.6
Work Tank Int (L) (inch)
43.3
Work Tank Int (D) (inch)
31.9
Work Tank Int (H) (inch)
17.7
Work Tank Dielectric cap. (gal)
157
X Travel (inch)
25.6
Y Travel (inch)
17.7
Z Travel (inch)
13.8
X Rapid (ipm)
79
Y Rapid (ipm)
79
Z Rapid (ipm)
79
C axis Travel (inch)
360
Maxium Electrode Weight (lbs)
440
Power Mean Amps
80
Power Peak Amps
120
×
