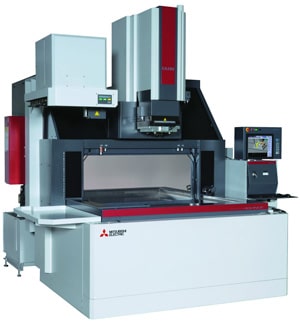

EA28V-LS ADVANCE
Brand：Mitsubishi EDM
Photo credit: Mitsubishi EDM
Rating
(0)
0
Write a review
Introduction
The Mitsubishi EA28V-LS Advance has all the same great features as the EA28V Advance, but offers a larger worktank and axes travels to better accommodate a rotary table or larger workpiece. It features the new MITSUBISHI M700 series control with 15” touch screen and FP80V energy saving power supply, reducing electrical consumption by 20% (as compared to the previous FP model). The all new IDPM “Intelligent Digital Power Master” Adaptive Control reduces graphite electrode wear by as much as 40%. The addition of the new SS Jump 5 system optimizes jump up acceleration control to stabilize high speed No-Flush burning.
FEATURES
- New High-Speed "V" Power Supply (FP80V or FP120V STD Optional)
- Compact Highly-Rigid Machine Design
- Fixed Table Traveling Column Construction
- Thermal Displacement Compensation Control
- Direct Drive AC Smart Servo System
- 3 Dimensional Lateral Servo System
- Z-Axis Linear Glass Scale Feedback
- M700 Series Control w 15" Touch Screen
- Windows Embedded Operating System
- USB and Ethernet Data Inputs Standard
- 40GB HD with a 1GB partition for user program storage
- E.S.P.E.R. Advance Program Support Functions
- Fuzzy Pro Plus Hands Off Operation
- IDPM “Intelligent Digital Power Master” Adaptive Control
- Fine Matte Finishing with the PS Circuit Standard
- Super-Low Wear SC Circuit
- Narrow Gap Circuit
- 3-Sided Drop Tank Work Tank Access
- Easy Access Triple-Filter System
- Dielectric Fluid Chiller Standard
- New High-Inertia Style C-Axis
- Multi-Port Flushing Manifold
- 36 Position Multi-Step Rise and Fall Worktank
- Auto Lubrication System
- Full 2-yr. Warranty with Triple Diamond Partnership Program
- Remote 360 (Remote user monitoring, diagnostics & service support)
- Preventative Maintenance (PM) Visit (to be used by end of 1st year)
Specifications
Machine Type
放電加工
Max Part Size (L) (inch)
53.1
Max Part Size (D)(inch)
33.5
Max Part Size (H)(inch)
17.7
Max Part Weight (lbs)
4409
Table Length (inch)
43.3
Table Depth (inch)
29.5
Work Tank Int (L) (inch)
55.1
Work Tank Int (D) (inch)
35.4
Work Tank Int (H) (inch)
21.7
Work Tank Dielectric cap. (gal)
283
X Travel (inch)
39.4
Y Travel (inch)
18.5
Z Travel (inch)
17.7
X Rapid (ipm)
79
Y Rapid (ipm)
79
Z Rapid (ipm)
79
C axis Travel (inch)
360
Maxium Electrode Weight (lbs)
441
Power Mean Amps
80
Power Peak Amps
120
×
