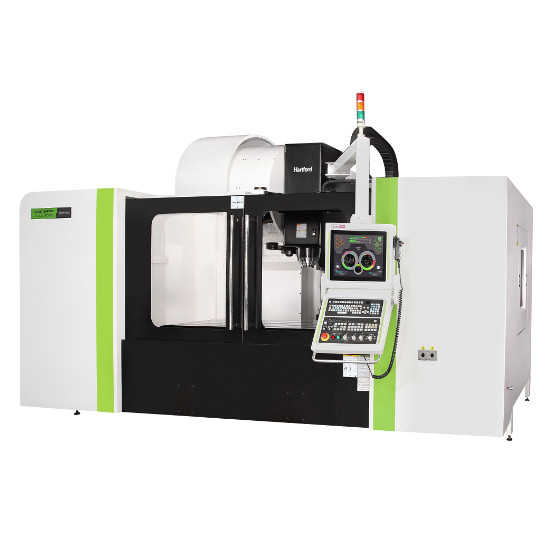

HCMC2082
品牌：Hartford_HMG
Photo credit: Hartford_HMG
評價
(0)
0
撰寫評論
介紹
|
Maximum support +Zero overhang design for optimum stability. Axis overhang +The base has been redesigned to widen the support points on the base and guarantee full support throughout the X axis traverses. Column extension delivers higher stability +The base of the machine has also been redesigned to deliver exceptional stability under heavier cutting loads.
|
|
3-axis with temperature controlled structure(HCMC-1100 opt.) +We have added recirculating cooling channels at each of these heat points to ensure that the thermal deformation is not an issue and positional accuracy is always maintained. A+ structure for HCMC-1100 +Wider column base interface to enhance stability and efficient force dissipation. |
規格
主軸椎度
#40
主軸轉速
6000
主軸方位
Vertical
刀庫數量
24
角度頭
None
工作臺長
84.65
工作臺寬
32.28
工作臺載重
5732
X軸行程
81.1
Y軸行程
32.28
Z軸行程
25.98
X軸快送
708
Y軸快送
708
Z軸快送
708
軸向同動
3
×
